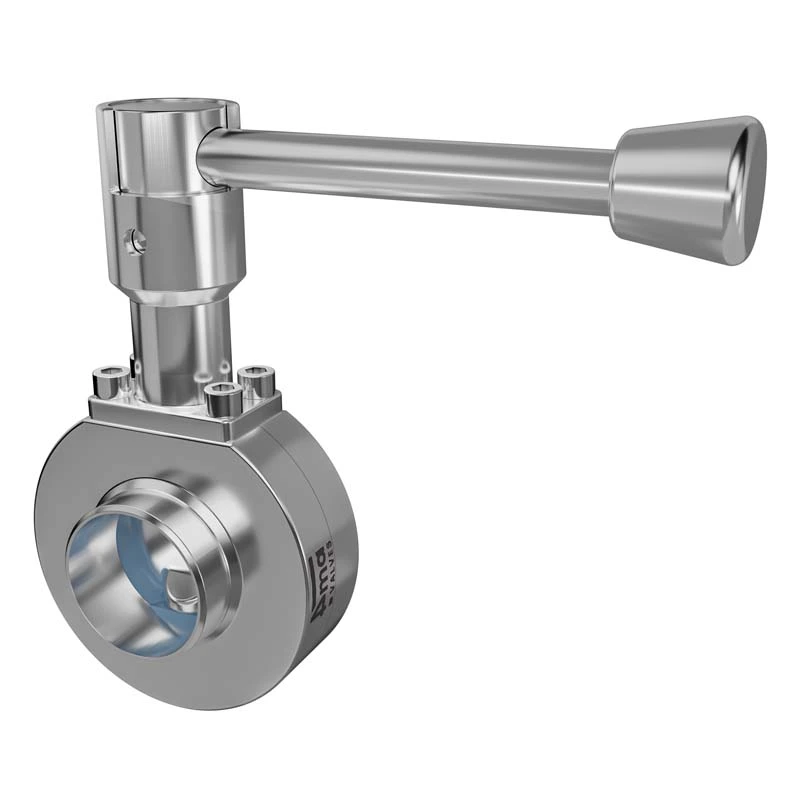

Sanitary Butterfly Valve Weldable End

MODEL‐PBB

4ma offers pharmaceutical grade, ultra‐sanitary butterfly valves for the control of dry bulk materials. Meeting the stringent requirements of the pharmaceutical, cosmetic, biotech, food and fine chemical industries. Sanitary butterfly valves are designed and manufactured to perform reliably in the most hostile production environments. Each valve is meticulously constructed using the finest materials.

OPERATION
Manual (lever & gear box)

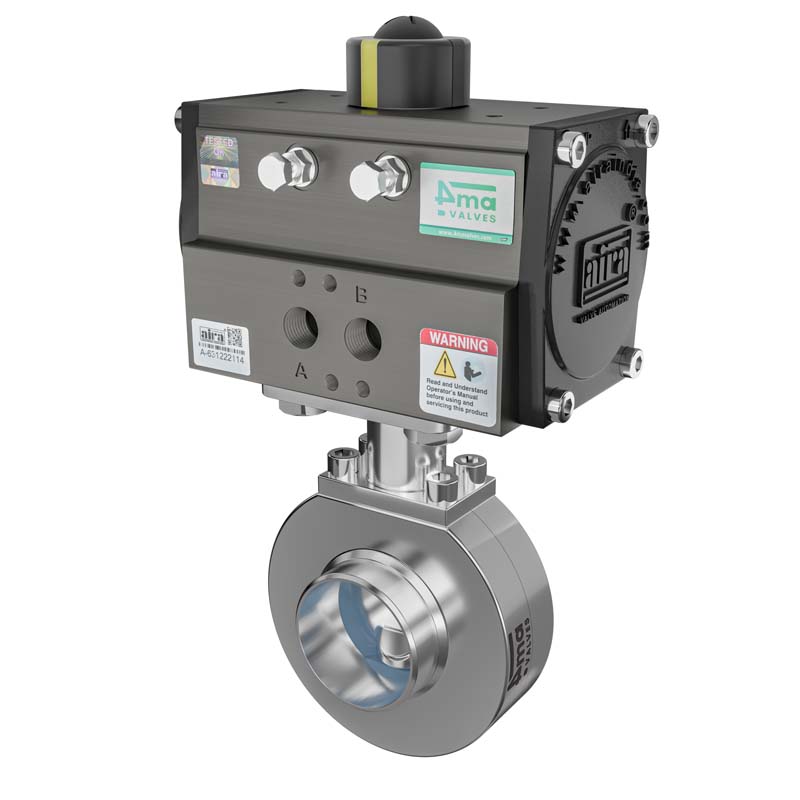

Pneumatic (D/A & S/A actuator)
Motorized

SIZES
1’’ to 8’’ (25mm to 200mm)
(higher size on request)

WORKING PRESSURE
25 to 100mm (Up to 10 kg/cm2 )
125 to 200mm (Up to 4 kg/cm2 )

TEMPERATURE
UPTO 180°C

LEACKAGE
CLASS V TO VI

MATERIAL OF CONSTRUCTION
S.S.304 / S.S.304L / S.S.316 / S.S.316L
(special alloy on request)

SEALS
SILICON / WHITE EPDM (FOOD GRADE)

MEDIA
AIR / WATER / OIL / POWDER / VACCUM

CONNECTION
ASME BPE` BS4825‐3 (STANDARD)
DIN32676‐A (ON REQUEST), ISO1127 (ON REQUEST)
