MODEL‐PBW
4ma make Sanitary butterfly valves are designed and manufactured to perform reliably in the most hostile production environments. Each valve is meticulously constructed using the finest materials. 4ma sanitary butterfly valve is a used primarily in industries that require strict hygiene and cleanliness, such as Pharmaceutical, Food, Cosmetic & Chemical, Dairy industry, Beverage industry, Paint & Color.
OPERATION

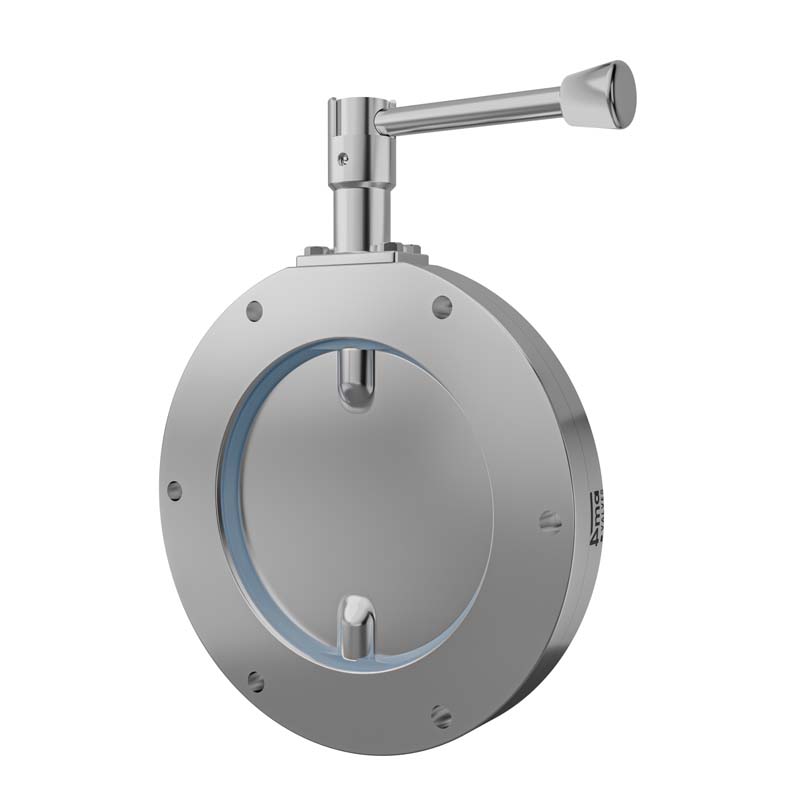

Manual (lever & gear box)

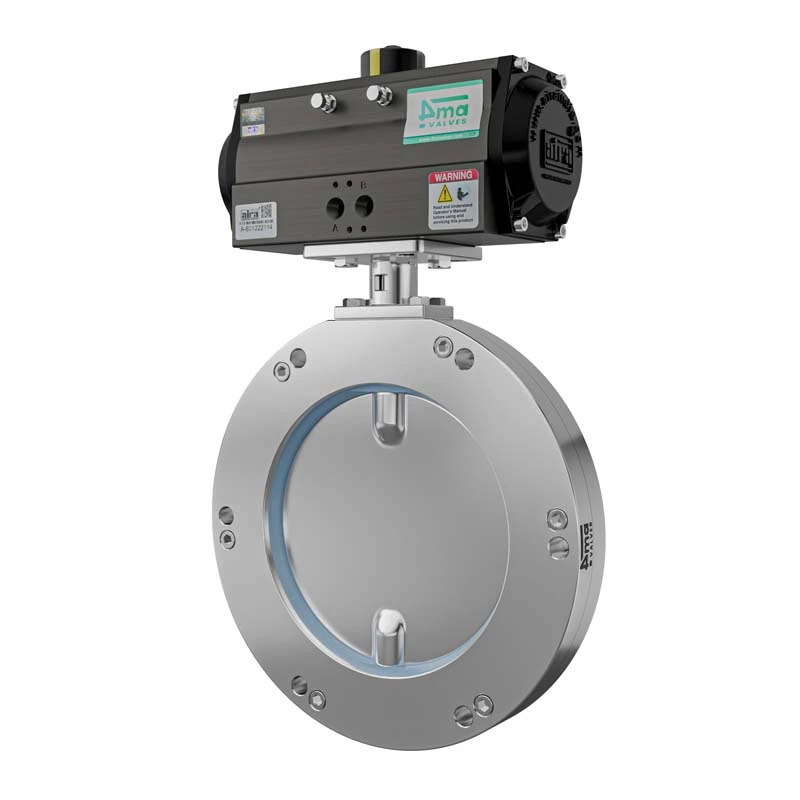

Pneumatic (D/A & S/A actuator)
Motorized
SIZES
1’’ to 20’’ (25mm to 500mm)
WORKING PRESSURE
25 to 100mm (Up to 10 kg/cm2 )
125 to 500mm (Up to 4 kg/cm2 )
TEMPERATURE
UPTO 180°C
LEACKAGE
CLASS V TO VI
MATERIAL OF CONSTRUCTION
S.S.304 / S.S.304L / S.S.316 / S.S.316L
(special alloy on request)
SEALS
SILICON / WHITE EPDM (FOOD GRADE)
MEDIA
AIR / WATER / OIL / POWDER / VACCUM
CONNECTION
MFG. STANDARD, ASME B16.5 150# (ON REQUEST), ASME B16.5 300# (ON REQUEST), BS10
TABLE D (ON REQUEST)
