Sanitary Butterfly Valve Tc End

MODEL‐PBT

OPERATION

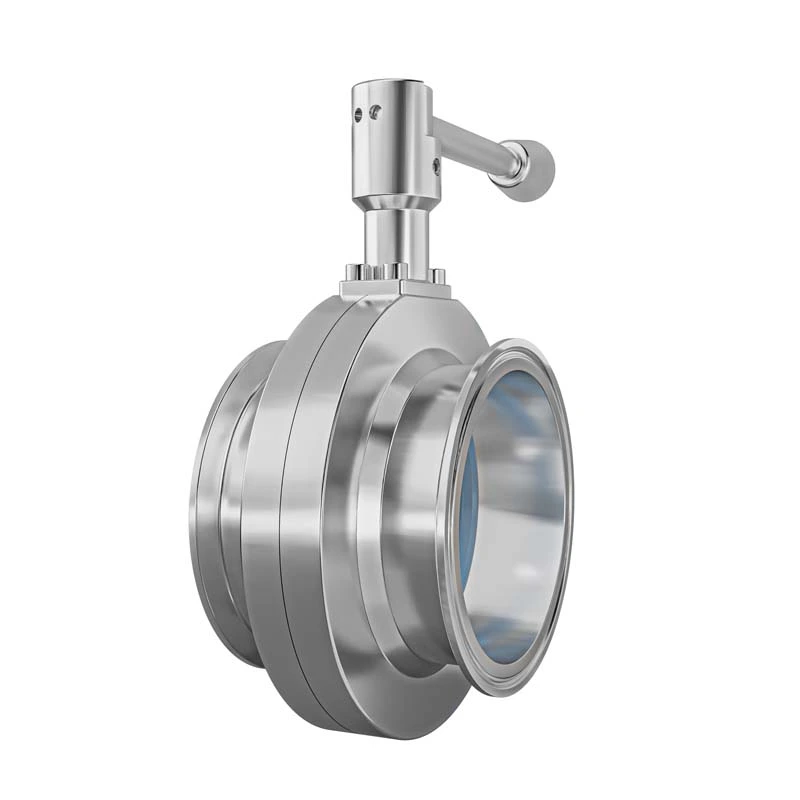

Manual (lever & gear box)

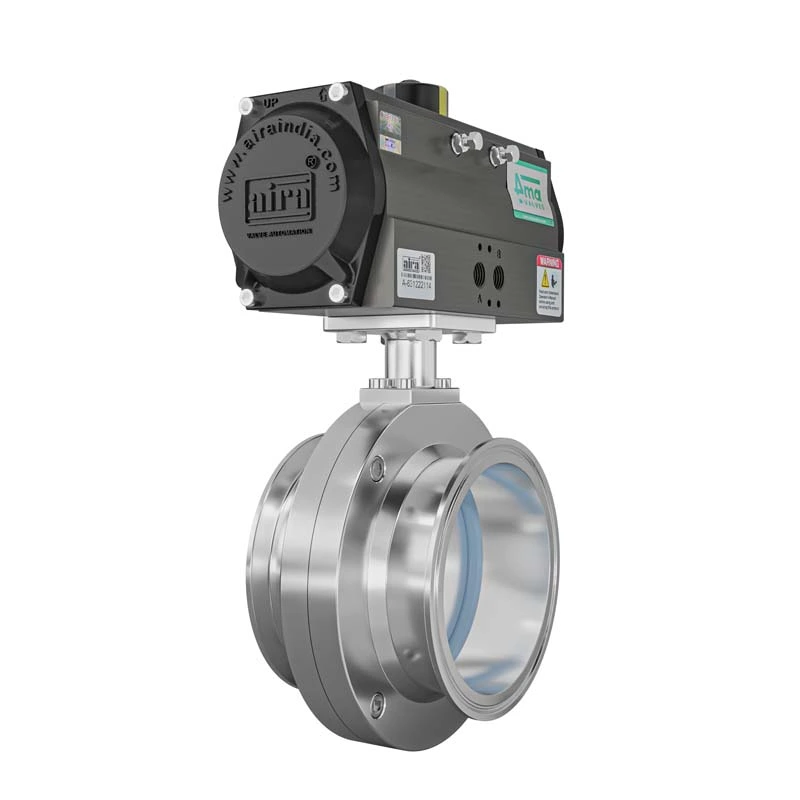

Pneumatic (D/A & S/A actuator)
Motorized

SIZES
1’’ to 12’’ (25mm to 300mm)

WORKING PRESSURE
25 to 100mm (Up to 10 kg/cm2 )
125 to 300mm (Up to 4 kg/cm2 )

TEMPERATURE
UPTO 180°C

LEACKAGE
CLASS V TO VI

MATERIAL OF CONSTRUCTION
S.S.304 / S.S.304L / S.S.316 / S.S.316L
(special alloy on request)

SEALS
SILICON / WHITE EPDM (FOOD GRADE)

MEDIA
AIR / WATER / OIL / POWDER / VACCUM

CONNECTION
ASME BPE` BS4825‐3 (STANDARD)
DIN32676‐A (ON REQUEST)
ISO1127 (ON REQUEST)
