Sanitary Butterfly Valve One Side Wafer & One Side Tc End, Liner End, Neck End

MODEL‐PBX

OPERATION

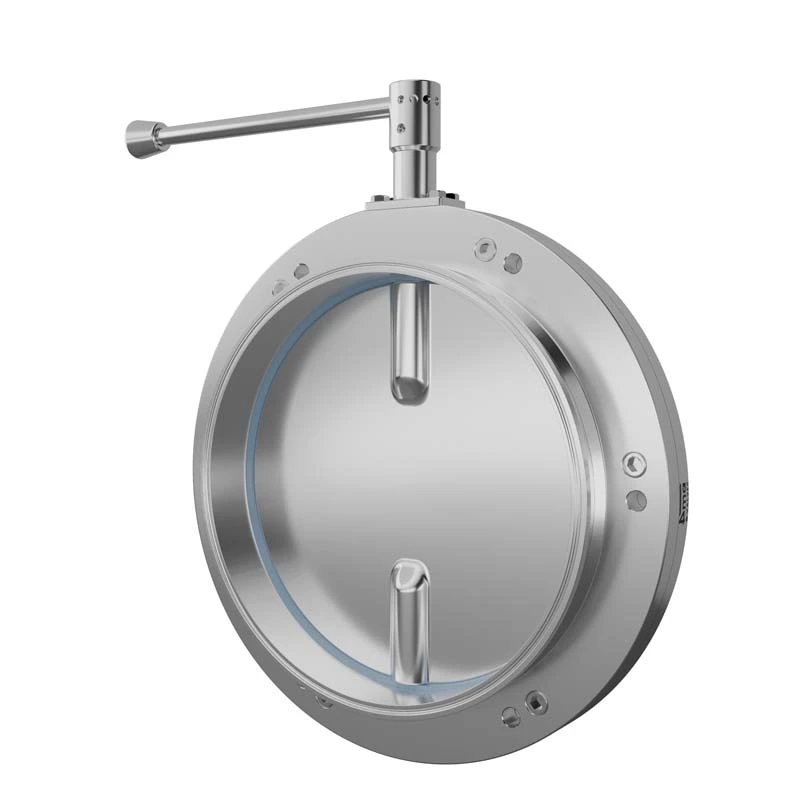

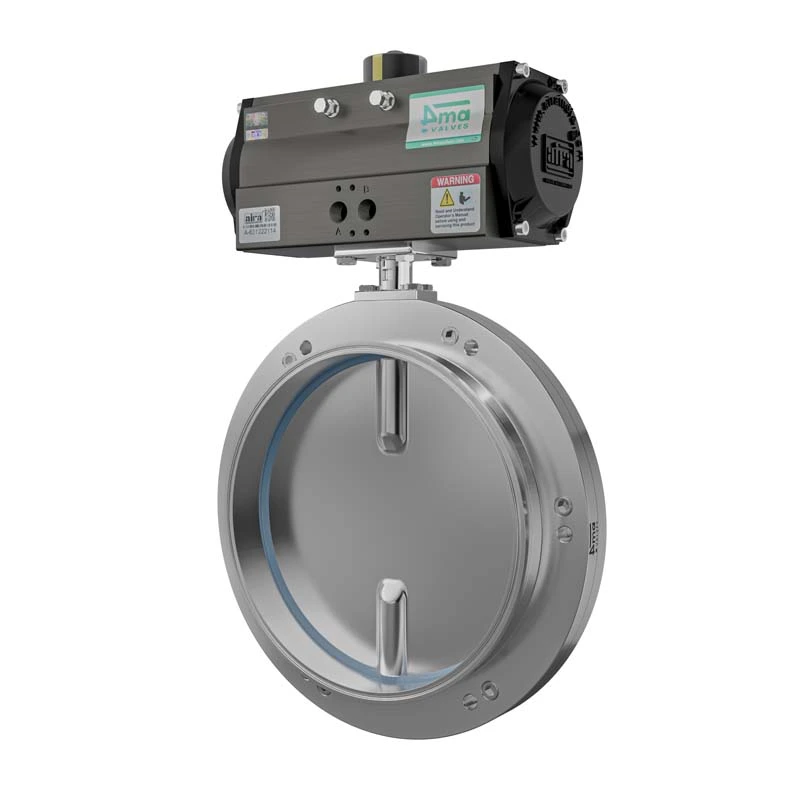

Manual (lever & gear box) Pneumatic (D/A & S/A actuator) Motorized

SIZES

1’’ to 12’’ (25mm to 300mm)

WORKING PRESSURE

25 to 100mm (Up to 10 kg/cm2 ) 125 to 300mm (Up to 4 kg/cm2 )

TEMPERATURE

UPTO 180°C

LEACKAGE

CLASS V TO VI

MATERIAL OF CONSTRUCTION

S.S.304 / S.S.304L / S.S.316 / S.S.316L (special alloy on request)

SEALS

SILICON / WHITE EPDM (FOOD GRADE)

MEDIA

AIR / WATER / OIL / POWDER / VACCUM

CONNECTION

STANDARD, ASME B16.5 150# (ON REQUEST), ASME B16.5 300# (ON REQUEST), BS10 TABLE D (ON REQUEST), ASME BPE` BS4825‐3 (STANDARD), DIN32676‐A (ON REQUEST), ISO1127 (ON REQUEST)
