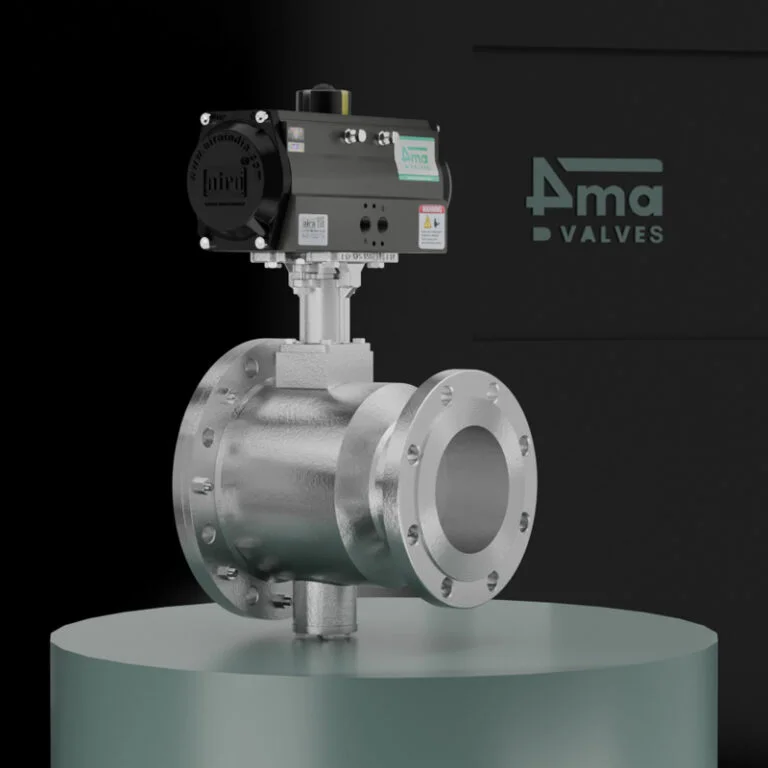

Segmented Type Bottom Valve
4ma Valves is the leading Segmented Type Bottom Valve Manufacturer and Supplier in India. We manufacture various types of Industrial Santiray Valves suitable to your applications. We manufacture both manually operated and pneumatically operated valves.
Our best quality Segmented Type Bottom Valves for the Dairy Industry explore various industries, including the Pharmaceutical, Food Industry, Cosmetic & Chemical, Beverage Industry, Paint & Colour, etc. also we manufacture valves according to the customized needs and demands of our customers.
4ma Valves Automation is a leading manufacturer & supplier of segmented type sanitary flush bottom valves, ensuring efficient and hygienic flow control.
What is a Segmented Type Flush Bottom Valve?
A Segmented Type Flush Bottom Valve is a compact, segmented ball-type valve designed to open directly into a tank or reactor, enabling 100% flushing or discharging of material with zero product hold-up. The cavity between the ball and body is filled with PTFE or an application-suitable cavity filler, preventing fluid entrapment that could lead to contamination or product loss. As a leading segmented bottom valve manufacturer, 4ma Valves Automation offers this design in single-piece, two-piece, and three-piece construction to suit various tank configurations. Explore our Valves range or compare with our Flush Bottom Ball Valve.
Key Features of 4MA Segmented Type Flush Bottom Valve
- Segmented ball design for zero cavity, zero hold-up shut-off
- Cavity filled with PTFE or application-suitable filler to prevent entrapment
- Available in single-piece, two-piece, and three-piece construction
- End connections: Flanged, welded, tongue and groove, SMS, or triclover
- Full port design ensures complete drainage without dead legs
- Suitable for high-viscosity and vacuum-holding tank applications
- Manual, pneumatic, or motorized actuation options available
Applications of Segmented Type Flush Bottom Valve
As a trusted sanitary segmented bottom valve supplier, 4ma Valves Automation serves pharmaceutical manufacturing, fine chemicals, food processing, and reactor/vessel discharge applications where zero product retention and hygienic drainage are essential.
Benefits of Segmented Type Flush Bottom Valve
- Zero hold-up design prevents contamination and bacterial growth
- Segmented cavity eliminates internal pockets that trap fluid or biological residue
- Flexible construction options (1-piece, 2-piece, 3-piece) suit different tank designs
- Superior sealing performance compared to conventional flush bottom valves
- Full flushing capability ensures complete material discharge
- Suitable for vacuum-holding tanks and demanding process conditions
Working of Segmented Type Flush Bottom Valve
The segmented ball, positioned at the base of the tank or reactor, rotates to open directly into the vessel, allowing complete flushing or discharge of the tank’s contents. As the ball rotates open, its segmented, full-port geometry ensures the material flows out completely without leaving residue trapped in the cavity between the ball and body. When closed, the PTFE or cavity filler material seals the gap between ball and body, preventing any fluid entrapment that could lead to bacterial growth or cross-contamination between batches.
Why Choose 4ma Valves Automation?
As India’s leading sanitary ss segmented bottom valve manufacturer and supplier, 4ma Valves Automation delivers segmented type flush bottom valves engineered for efficient, hygienic flow control. With flexible construction options, superior zero-hold-up sealing, and years of experience serving hygiene-sensitive industries, we deliver valves built for dependable, contamination-free performance.
Explore our Valves range, or Get a Quote today.
