Angle Type Bottom Valves

We are stainless steel angle type flush bottom valve supplier, offering high-quality flush bottom valves for efficient drainage and precise flow control.

What is an Angle Type Flush Bottom Valve?

An Angle Type Flush Bottom Valve is a tank-mounted valve with a modified ‘Y’ type body, where the outlet port is set at an angle — typically 45 or 60 degrees — relative to the inlet port, and the stem is located in the vertical branch. Its seat and disc design resembles a globe valve with metal-to-metal or PTFE seating, providing dead-space-free shutoff by placing the valve seat flush with the vessel bottom. As a leading angle type flush bottom valve manufacturer, 4ma Valves Automation offers this design cast or fabricated in stainless steel and other specified metallurgies. Explore our Valves range or compare with our Flush Bottom Ball Valve.

Key Features of Angle Type Flush Bottom Valve by 4MA

• Modified ‘Y’ type body with angled outlet port (typically 45° or 60°)
• Seat and disc design similar to a globe valve
• Seating options: Metal-to-metal or PTFE, fixed or renewable seat
• Body materials: Stainless steel, with special alloys available on request
• Flanged end connections for secure tank mounting
• Disc can lift up into the vessel or pull down into the valve body
• Compatible with jacketed, actuated, or lined vessel designs

Applications of Angle Type Flush Bottom Valve

As a trusted stainless steel angle type flush bottom valve supplier, 4ma Valves Automation serves reactors, storage tanks, and process vessels across pharmaceutical, chemical, and food industries where dead-space-free drainage of viscous, semi-solid, or slurry media is required.

Benefits of Angle Type Flush Bottom Valve

• Angled outlet design allows compact installation with directional discharge
• Flush-mounted seat eliminates product buildup in the vessel nozzle
• Renewable seat options simplify maintenance and extend service life
• Metal-to-metal or PTFE seating suits varied media and temperature conditions
• Suitable for viscous, semi-solid, and slurry materials that clog standard valves
• Compatible with jacketed and insulated vessel configurations

Working of Angle Type Flush Bottom Valve

The Angle Type Flush Bottom Valve is mounted at the base of a tank, with its disc seated flush against the vessel bottom to eliminate dead space. When actuated, the stem — located in the vertical branch of the Y-shaped body — lifts the disc off the seat, opening a path for the tank’s contents to discharge through the angled outlet port. When closed, the disc presses firmly back against the seat, achieving a tight, dead-space-free shutoff similar to a globe valve’s closing action, preventing any product buildup in the nozzle.

Types of Angle Type Flush Bottom Valve Offered by 4MA

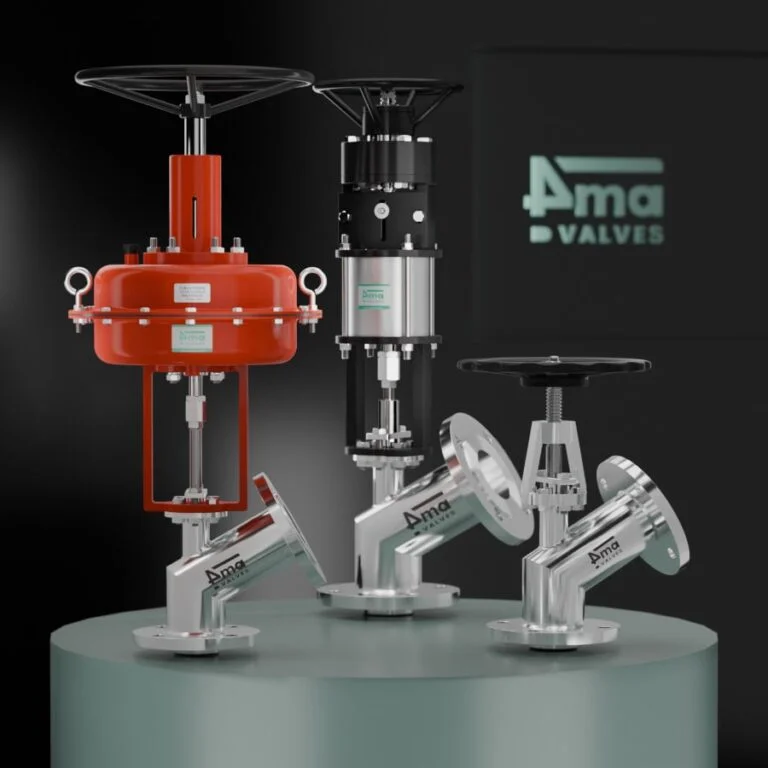

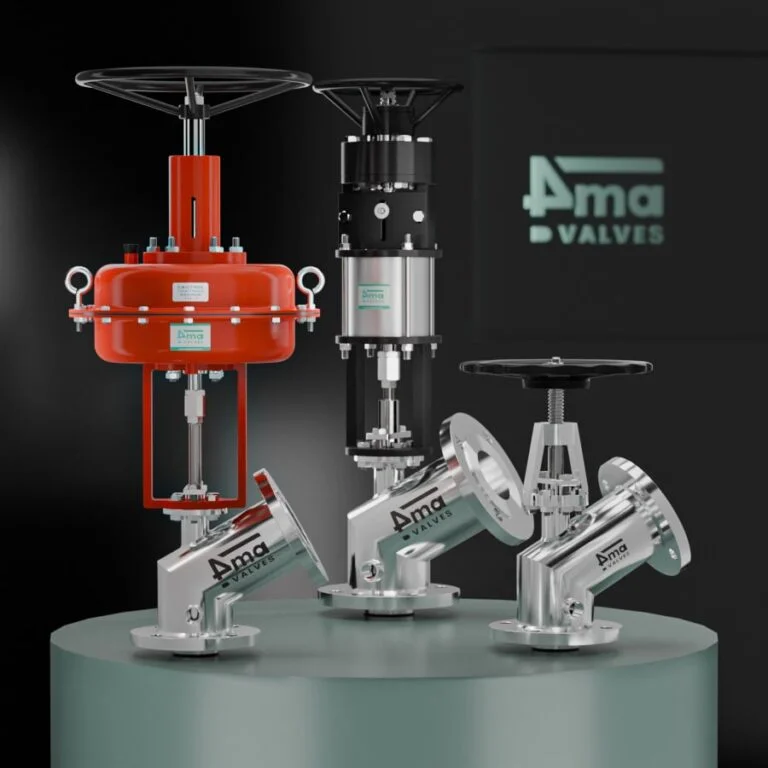

• Angle Type Flush Bottom Valve Full Bore – Offers an unrestricted flow path matching the full pipe diameter for maximum discharge capacity.

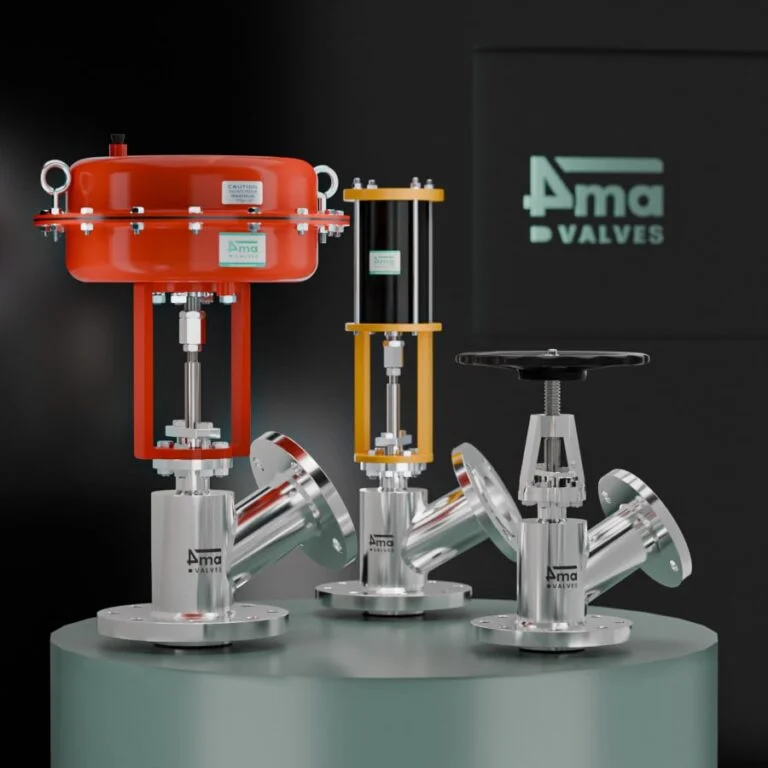

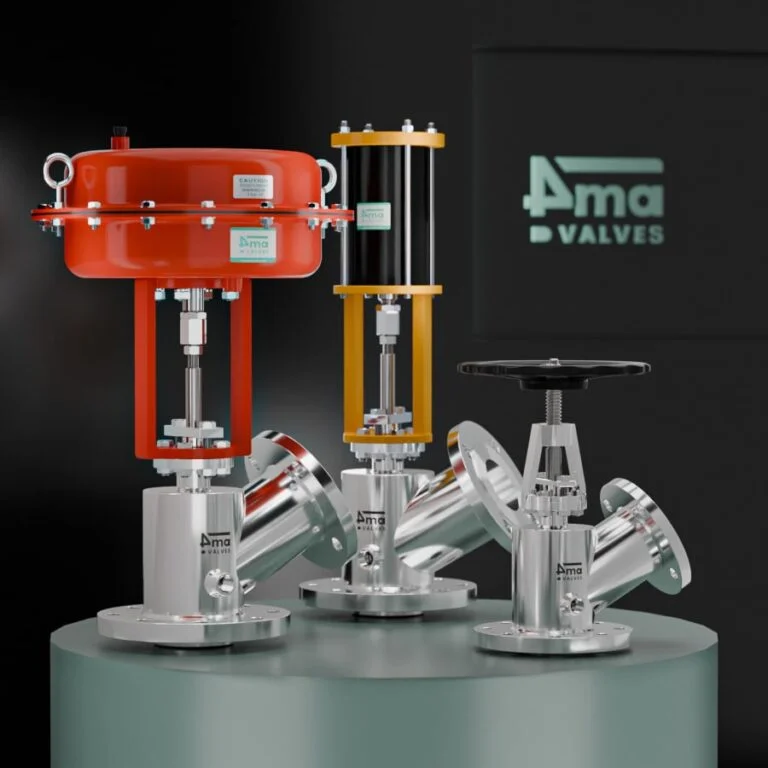

• Angle Type Flush Bottom Valve Reduce Bore – Uses a smaller bore, suited to applications where full flow capacity isn't required.

Why Choose 4ma Valves Automation?

As a reliable angle type flush bottom valve manufacturer and supplier, 4ma Valves Automation delivers stainless steel valves engineered for efficient drainage and precise flow control. With flexible seating options, multiple metallurgies, and years of experience serving hygiene-sensitive and process industries, we deliver valves built for dependable, long-term performance.

Explore our Valves range, or Get a Quote today.
