What is a Limit Switch Box?

A Limit Switch Box is an electromechanical device mounted on top of a valve actuator that senses the physical open or closed position of a valve and sends an electrical signal back to the control room or PLC. Built in Stainless Steel or Aluminum with a NAMUR mounting pattern, it provides both visual (dome-style indicator) and electrical position feedback. As a leading limit switch box manufacturer, 4ma Valves Automation offers custom configurations on request for demanding automation applications. Explore our Automation Accessories range or compare with our Pneumatic Actuator.

Key Features of 4MA Limit Switch Box

• Weatherproof enclosure with NAMUR-pattern mounting bracket
• Body material: Stainless Steel or Aluminum, polyester coated
• Two SPDT mechanical switches for open/closed position confirmation
• Dome-style visual position indicator (0° to 90°)
• Adjustable switch cams for precise position calibration
• Terminal block for external wiring and solenoid valve connection
• Custom configurations available on request

Applications of Limit Switch Box

As a trusted limit switch box supplier, 4ma Valves Automation serves pharmaceutical, food, dairy, and process industries where real-time valve position feedback is essential for PLC/SCADA integration, remote monitoring, and preventing costly process errors from undetected valve failures.

Benefits of Limit Switch Box

• Real-time position feedback prevents costly process disruptions
• Visual dome indicator allows quick on-site status confirmation
• Weatherproof, rugged construction suits harsh industrial environments
• Compatible with standard NAMUR pattern actuators for easy integration
•  Custom options accommodate specific automation requirements
• Reliable operation reduces unplanned downtime from valve failures

Working of Limit Switch Box

The limit switch box mounts directly onto the top of the valve actuator via its NAMUR-pattern bracket, with an internal shaft connecting to the actuator’s rotating stem. As the actuator turns the valve open or closed, the shaft rotates the internal cams, which are pre-set to trigger the mechanical switches at the exact open and closed positions. Each triggered switch completes an electrical circuit, sending an on/off signal through the wiring to the control system or PLC, while the external dome indicator simultaneously provides a clear visual confirmation of valve status.

Types of Limit Switch Box Offered by 4MA

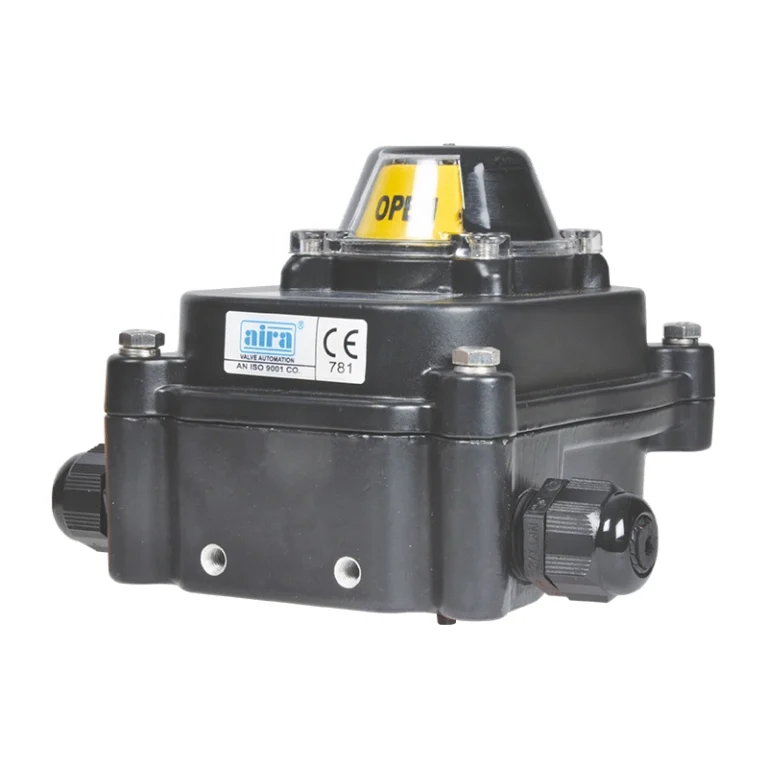

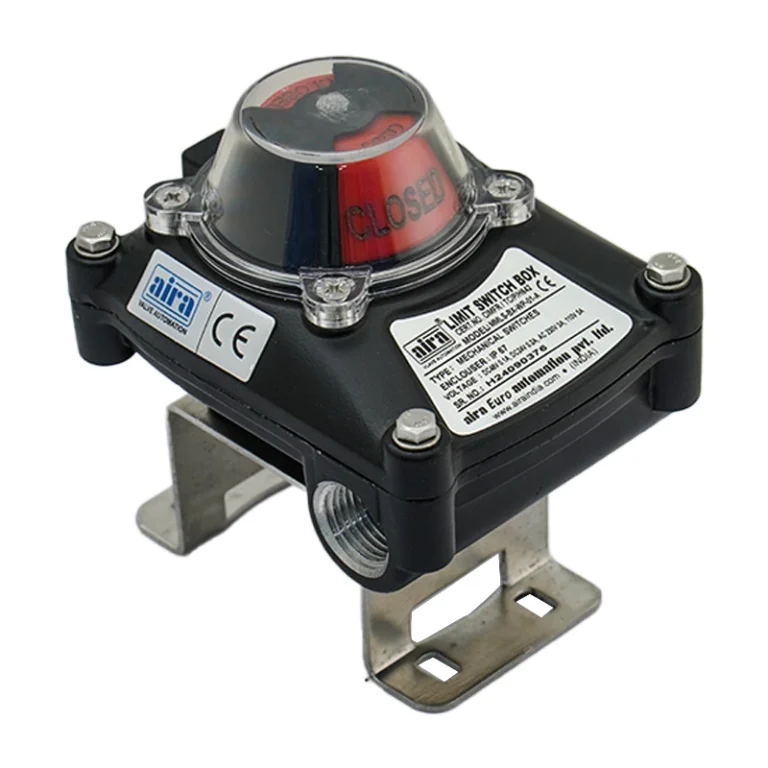

• Micro Limit Switch Box – A compact, space-saving design suited to smaller actuators and tight installation areas.

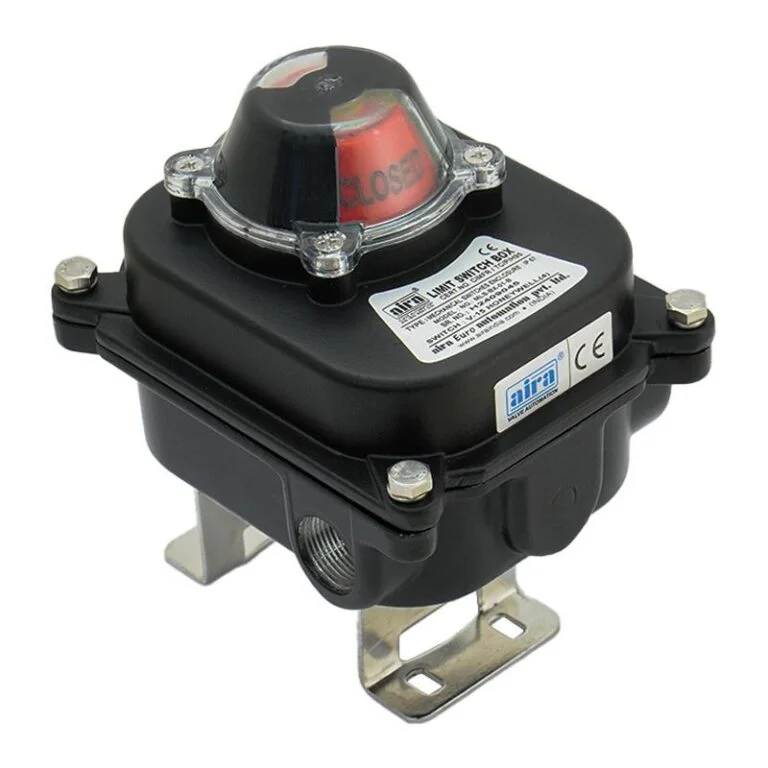

• Standard Limit Switch Box – A general-purpose design offering reliable position feedback for most standard actuator applications.

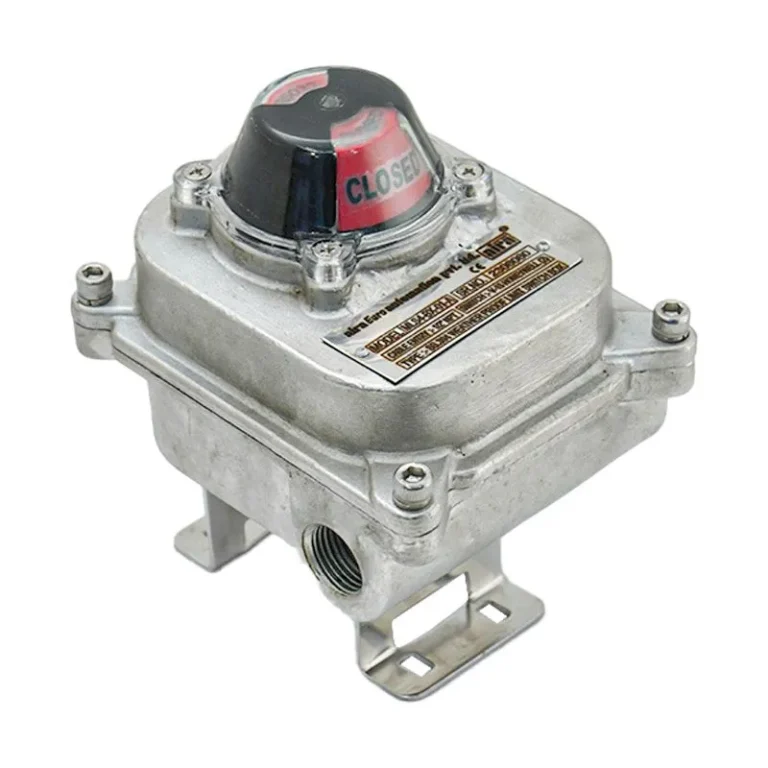

• Stainless Steel Limit Switch Box – Offers superior corrosion resistance, ideal for washdown, hygienic, or corrosive industrial environments.

Why Choose 4ma Valves Automation?

As a reliable limit switch box manufacturer in India, 4ma Valves Automation delivers durable, precision-calibrated limit switch boxes for automation and control applications. With stainless steel and aluminum options, custom configurations, and years of experience supporting pharmaceutical and process industries, we deliver limit switches built for dependable, long-term position feedback.
